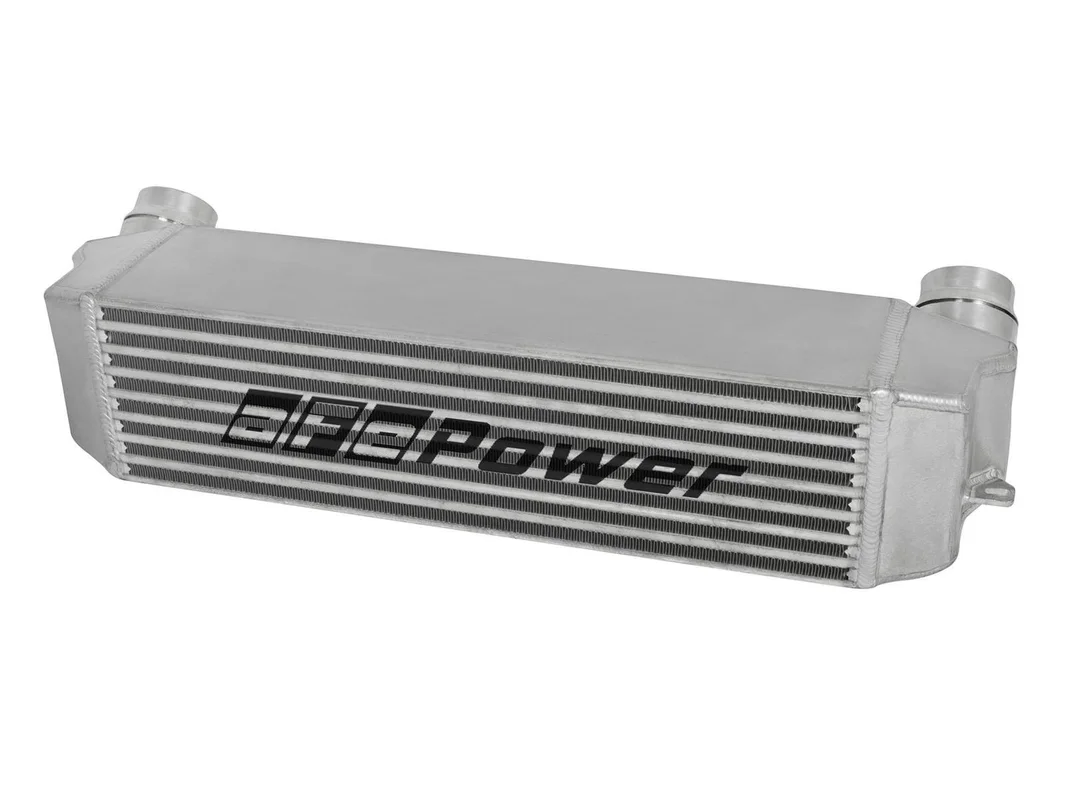

AFE 46-20221 BladeRunner GT Series Intercooler

Description

BladeRunner GT Series Intercooler BMW 328i (F30) 12-18 L4-2.0L (t) N20 This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5″ bar and plate core design. This design outflows the factory fin core design, while the 3/16″ TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 17% and lowered the intake air temperatures. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16″ thick aluminum plates and include two 1/8″ NPT ports for sensors or water-methanol injection. 5″ Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory. TIG-Welded: 100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks. Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi. Perfect Fit: Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.

• Outflows Factory Intercooler By 17%
• Lowers Manifold Intake Air Temperature
• 2.5 in. Billet Aluminum Intake/Outlet
• Incorporates Factory Style Quick Connections For Tubes
• 5 in. Bar And Core Design 29% Larger than Stock
• 100% TIG Welded
• 1/8 in. NPT Ports On Intercooler And Tube
• No Cutting Or Modifications Are Needed

Application Summary:
