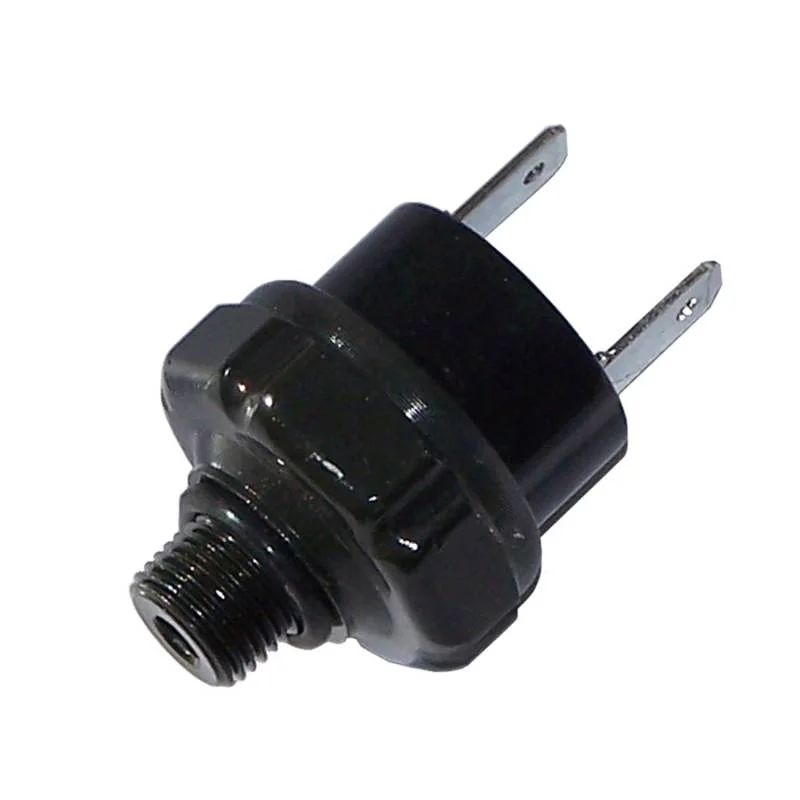

Kleinn Automotive 2130 Heavy Duty Pressure Switch

Description

Model 2130 Pressure Switch On: 100 PSI – Off: 130 PSI – 2 Male Spades – 1/4″ NPT The Kleinn Model 2130 is a heavy-duty, tank-mount pressure switch engineered to automatically regulate your onboard air system, activating the compressor at 100 PSI and shutting it off at 130 PSI. Featuring a standard 5% PSI tolerance and dual male spade-style terminals for secure wiring connections, this switch utilizes 12-volt ignition power to signal a required SPDT 30/40-amp Model 340 relay, automating your compressor’s operation. For critical system protection, it is highly recommended to pair this switch with a safety relief valve on the air tank; in the event of a pressure switch failure, the safety valve will blast off to release excess air, serving as an audible alert to immediately cut power to the compressor to prevent it from burning out before replacing the switch. 20 amp max load The use of a relay is recommended (Kleinn model 340) Note: 5% tolerance standard On: 90 PSI – Off: 130 PSI 1/4″ M NPT w/ 2 Male Spade Terminals
